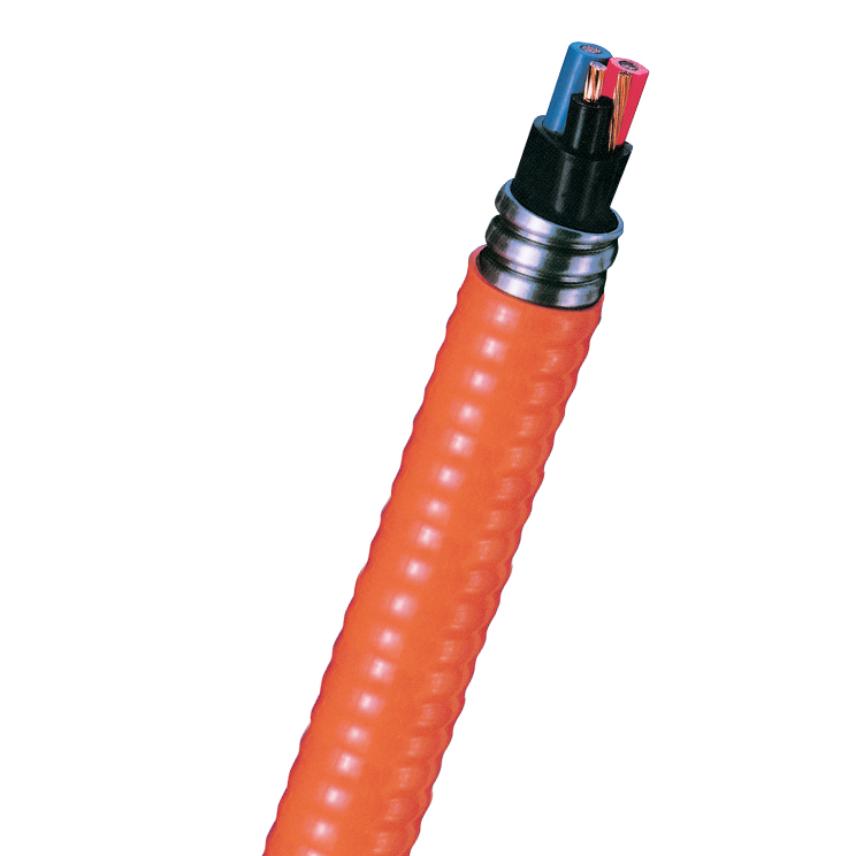

TECK90 3C 5 kV Unshielded

Products

3C1(18) TECK 5KV UNSHLD

Nexans ref. 12000293 - Country ref. 217760

  • Packaging: Cut to length (m)
  • Approximate net weight: 2539.5 kg/km
  • Cable Diameter: 42.7 mm
  • Conductor size (AWG): 1
  • Finished Cable Diameter: 1.681 inches
  • Nominal cable weight: 1706 lb/kft
  • Number of strands: 18



3C1/0(18) TECK 5KV UNSHLD

Nexans ref. 12000258 - Country ref. 200766

  • Packaging: Cut to length (m)
  • Approximate net weight: 2926.2 kg/km
  • Cable Diameter: 44.81 mm
  • Conductor size (AWG): 1/0
  • Finished Cable Diameter: 1.764 inches
  • Nominal cable weight: 1966 lb/kft
  • Number of strands: 18



3C2(7) TECK 5KV UNSHLD

Nexans ref. 12000273 - Country ref. 226225

  • Packaging: Cut to length (m)
  • Approximate net weight: 2167.7 kg/km
  • Cable Diameter: 40.5 mm
  • Conductor size (AWG): 2
  • Finished Cable Diameter: 1.594 inches
  • Nominal cable weight: 1457 lb/kft
  • Number of strands: 7



3C2/0(18) TECK 5KV UNSHLD

Nexans ref. 12000274 - Country ref. 226233

  • Packaging: Cut to length (m)
  • Approximate net weight: 3391.6 kg/km
  • Cable Diameter: 47.0 mm
  • Conductor size (AWG): 2/0
  • Finished Cable Diameter: 1.85 inches
  • Nominal cable weight: 2279 lb/kft
  • Number of strands: 18



3C250(36) TECK 5KV UNSHLD

Nexans ref. 12000276 - Country ref. 226274

  • Packaging: Cut to length (m)
  • Approximate net weight: 5772.4 kg/km
  • Cable Diameter: 58.84 mm
  • Conductor size (AWG): 250
  • Finished Cable Diameter: 2.317 inches
  • Nominal cable weight: 3879 lb/kft
  • Number of strands: 36



3C350(36) TECK 5KV UNSHLD

Nexans ref. 12000277 - Country ref. 226282

  • Packaging: Cut to length (m)
  • Approximate net weight: 7597.2 kg/km
  • Cable Diameter: 64.93 mm
  • Conductor size (AWG): 350
  • Finished Cable Diameter: 2.556 inches
  • Nominal cable weight: 5105 lb/kft
  • Number of strands: 36



3C4(7) TECK 5KV UNSHLD

Nexans ref. 12000216 - Country ref. 135723

  • Packaging: Cut to length (m)
  • Approximate net weight: 1673.8 kg/km
  • Cable Diameter: 37.9 mm
  • Conductor size (AWG): 4
  • Finished Cable Diameter: 1.492 inches
  • Nominal cable weight: 11247 lb/kft
  • Number of strands: 7



3C4/0(18) TECK 5KV UNSHLD

Nexans ref. 12000275 - Country ref. 226241

  • Packaging: Cut to length (m)
  • Approximate net weight: 4836 kg/km
  • Cable Diameter: 53.7 mm
  • Conductor size (AWG): 4/0
  • Finished Cable Diameter: 2.114 inches
  • Nominal cable weight: 3250 lb/kft
  • Number of strands: 18



3C500(36) TECK 5KV UNSHLD

Nexans ref. 12000278 - Country ref. 226290

  • Packaging: Cut to length (m)
  • Approximate net weight: 10009.4 kg/km
  • Cable Diameter: 71.63 mm
  • Conductor size (AWG): 500
  • Finished Cable Diameter: 2.82 inches
  • Nominal cable weight: 6726 lb/kft
  • Number of strands: 36



3C6(7) TECK 5KV UNSHLD ORG

Nexans ref. 12001573 - Country ref. 661206

  • Packaging: Cut to length (m)
  • Approximate net weight: 1361 kg/km
  • Cable Diameter: 35.32 mm
  • Conductor size (AWG): 6
  • Finished Cable Diameter: 1.391 inches
  • Nominal cable weight: 915 lb/kft
  • Number of strands: 7



Description

Description

Standards

  • National
    CSA C22.2 N° 131

Nexans TECK90 Cables are intended for use in various primary and secondary industries, including chemical processing plants, refineries and general factory environments.

Even in the most demanding industrial and resource industry applications, Nexans TECK90 cables have proven to have a superior service and maintenance record.

TECK90 Cables utilize low acid gas, low flame spread PVC jacket compounds to ensure maximum safety to personnel and equipment in the event of fire.

Applications

TECK90 Cables, originally developed for use in Canadian mines, are flexible, resistant to mechanical abuse, corrosion resistant, compact and reliable. They are suitable for a wide range of applications, including ALL hazardous locations - Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III.

Industries such as pulp and paper, chemical, petroleum and other primary and secondary manufacturing industries have used TECK90 Cables, particularly in areas where cables are subject to the risk of mechanical damage and chemical attack.

Commercial applications for TECK90 Cables include apartment buildings and commercial complexes.

TECK90 Cables can be relocated easily because they are rugged and flexible. They can be used in both dry and wet locations in open wiring, in ventilated, non-ventilated and ladder-type cable troughs, in ventilated flexible cableways, and for direct burial.

TECK90 Cables are also suitable for service entrance installations - above and below ground.

Highlights

Nexans TECK90 Cables are:

  • Available from stock
  • Versatile
  • Flexible
  • Resistant to Mechanical Abuse and Corrosion
  • Compact and Reliable
  • "HL" and "FT4" Rated per CSA
  • 90°C to -40°C
  • Low Acid Gas (AG14)
  • Inner and outer jackets are sunlight resistant
  • LEAD FREE
  • RoHS compliant

Marking and Identification

The inner jackets of Nexans TECK90 cables are printed: SUN RES.

The outer jackets of Nexans TECK90 cables are printed: (mon/year) NEXANS TECK90 XLPE (-40°C) CSA LL19376 F HL FT4 AG14 SUN RES along with conductor size, number of conductors and sequential metre marking.



Conductor Identification:
Red, Black, Blue
- 14 AWG to 2 AWG: Coloured Insulation
- 1 AWG to 500 kcmil: Coloured Stripes

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
PVC or PE Jacket
Jacket Colour
Orange

Electrical characteristics

Electrical characteristics

Maximum operating voltage
5 kV

Usage characteristics

Usage characteristics

Maximum operating temperature
90 °C
Minimum installation temperature
-40 °C

Resources

Resources

Selling & delivery Information

Caution Notice

In case of fire, well maintained early warning smoke detectors will give an alarm long before non-metallic coverings become combustible. However, in spite of the widespread and long-standing use of PVC in residential and commercial buildings, all purchasers of PVC insulated/ jacketed products should be aware of the following:
  • Non-metallic coverings of electrical cables can burn and may transmit fire when ignited.
  • Burning non-metallic coverings may emit acid gases which are toxic and may generate dense smoke.
  • Emission of acid gases may corrode metal in the vicinity; e.g. sensitive instruments and reinforcing rods in cement.
