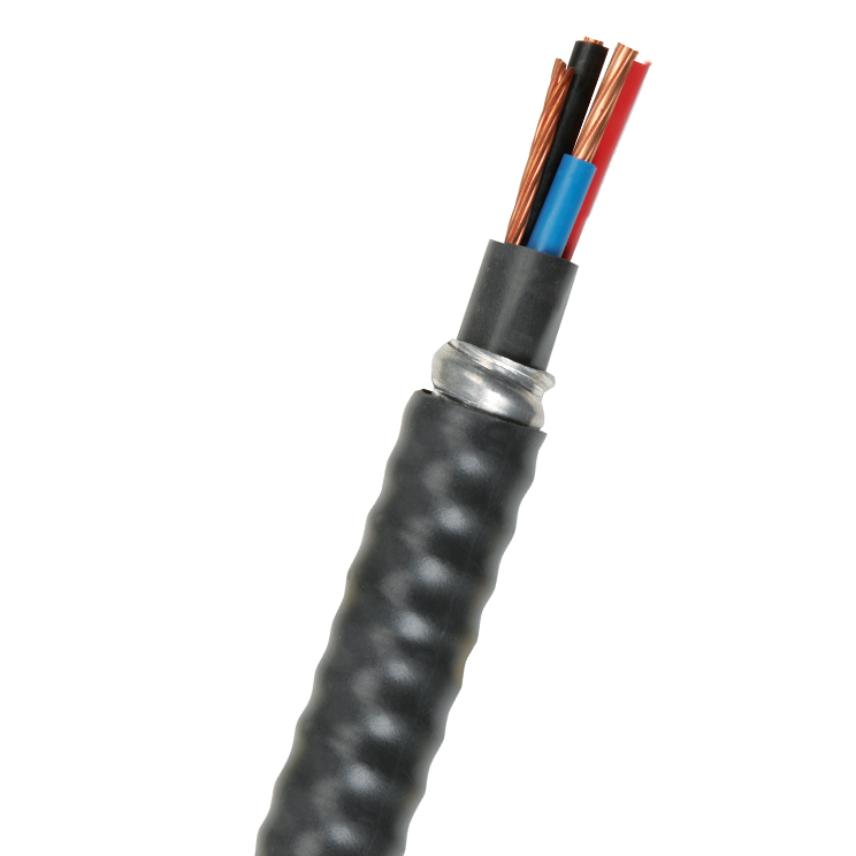

TECK90 600 Volts
TECK90 600 Volts
Nexans TECK90 Cables are intended for use in various primary and secondary industries, including chemical processing plants, refineries and general factory environments.
Read more10C12(7) TECK90 600V
Nexans ref. 12000144 - Country ref. 422337
- Packaging: Cut to length (m)
- Approximate Net Weight: 531 lb/kft
- Approximate Net Weight: 790 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 27.4 mm
- Cable Diameter: 1.08 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 325 kg/km
- Copper Content: 218 lb/kft
- Number of Conductors: 10
10C14(7) TECK90 600V
Nexans ref. 12000113 - Country ref. 388207
- Packaging: Cut to length (m)
- Approximate Net Weight: 448 lb/kft
- Approximate Net Weight: 667 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 25 mm
- Cable Diameter: 0.98 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 212 kg/km
- Copper Content: 142 lb/kft
- Number of Conductors: 10
12C12(7) TECK90 600V
Nexans ref. 12000130 - Country ref. 416388
- Packaging: Cut to length (m)
- Approximate Net Weight: 651 lb/kft
- Approximate Net Weight: 969 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 28.6 mm
- Cable Diameter: 1.13 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 387 kg/km
- Copper Content: 260 lb/kft
- Number of Conductors: 12
12C14(7) TECK90 600V
Nexans ref. 12000139 - Country ref. 422279
- Packaging: Cut to length (m)
- Approximate Net Weight: 489 lb/kft
- Approximate Net Weight: 728 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 25.7 mm
- Cable Diameter: 1.01 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 250 kg/km
- Copper Content: 168 lb/kft
- Number of Conductors: 12
15C12(7) TECK90 600V
Nexans ref. 12000000 - Country ref. 444653
- Packaging: Cut to length (m)
- Approximate Net Weight: 755 lb/kft
- Approximate Net Weight: 1123 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 30.2 mm
- Cable Diameter: 1.19 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 478 kg/km
- Copper Content: 321 lb/kft
- Number of Conductors: 15
15C14(7) TECK90 600V
Nexans ref. 12000103 - Country ref. 443184
- Packaging: Cut to length (m)
- Approximate Net Weight: 583 lb/kft
- Approximate Net Weight: 868 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 27.7 mm
- Cable Diameter: 1.09 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 308 kg/km
- Copper Content: 207 lb/kft
- Number of Conductors: 15
20C10(7) TECK90 600V
Nexans ref. 12000109 - Country ref. 444620
- Packaging: Cut to length (m)
- Approximate Net Weight: 1291 lb/kft
- Approximate Net Weight: 1966 kg/km
- Bare Ground Size (AWG): 12
- Cable Diameter: 36.7 mm
- Cable Diameter: 1.45 inches
- Conductor Diameter: 0.116 inches
- Conductor Diameter (mm): 2.95
- Conductor size (AWG): 10 AWG
- Copper Content: 1005 kg/km
- Copper Content: 674 lb/kft
- Number of Conductors: 20
20C12(7) TECK90 600V
Nexans ref. 12000087 - Country ref. 432732
- Packaging: Cut to length (m)
- Approximate Net Weight: 973 lb/kft
- Approximate Net Weight: 1448 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 33.6 mm
- Cable Diameter: 1.32 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 632 kg/km
- Copper Content: 424 lb/kft
- Number of Conductors: 20
20C14(7) TECK90 600V
Nexans ref. 12000129 - Country ref. 398883
- Packaging: Cut to length (m)
- Approximate Net Weight: 766 lb/kft
- Approximate Net Weight: 1140 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 30.2 mm
- Cable Diameter: 1.19 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 404 kg/km
- Copper Content: 271 lb/kft
- Number of Conductors: 20
25C14(7) TECK90 600V
Nexans ref. 12000128 - Country ref. 398875
- Packaging: Cut to length (m)
- Approximate Net Weight: 852 lb/kft
- Approximate Net Weight: 1268 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 33.7 mm
- Cable Diameter: 1.33 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 501 kg/km
- Copper Content: 336 lb/kft
- Number of Conductors: 25
2C10(7) TECK90 600V
Nexans ref. 12000309
- Packaging: Cut to length (m)
- Approximate Net Weight: 272 lb/kft
- Approximate Net Weight: 405 kg/km
- Bare Ground Size (AWG): 12
- Cable Diameter: 19.5 mm
- Cable Diameter: 0.77 inches
- Conductor Diameter: 0.116 inches
- Conductor Diameter (mm): 2.95
- Conductor size (AWG): 10 AWG
- Copper Content: 128 kg/km
- Copper Content: 86 lb/kft
- Number of Conductors: 2
2C10(7) TECK90 600V x300m
Nexans ref. 12013453
- Packaging: Reel (300m)
- Approximate Net Weight: 272 lb/kft
- Approximate Net Weight: 405 kg/km
- Bare Ground Size (AWG): 12
- Cable Diameter: 19.5 mm
- Cable Diameter: 0.77 inches
- Conductor Diameter: 0.116 inches
- Conductor Diameter (mm): 2.95
- Conductor size (AWG): 10 AWG
- Copper Content: 128 kg/km
- Copper Content: 86 lb/kft
- Number of Conductors: 2
2C12(7) TECK90 600V
Nexans ref. 12000140 - Country ref. 422287
- Packaging: Cut to length (m)
- Approximate Net Weight: 238 lb/kft
- Approximate Net Weight: 354 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 18.4 mm
- Cable Diameter: 0.72 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 80 kg/km
- Copper Content: 54 lb/kft
- Number of Conductors: 2
2C12(7) TECK90 600V x300m
Nexans ref. 12010007
- Packaging: Reel (300m)
- Approximate Net Weight: 238 lb/kft
- Approximate Net Weight: 354 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 18.4 mm
- Cable Diameter: 0.72 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 80 kg/km
- Copper Content: 54 lb/kft
- Number of Conductors: 2
2C14(7) TECK90 600V
Nexans ref. 12000132 - Country ref. 422204
- Packaging: Cut to length (m)
- Approximate Net Weight: 191 lb/kft
- Approximate Net Weight: 284 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 17.5 mm
- Cable Diameter: 0.69 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 57 kg/km
- Copper Content: 38 lb/kft
- Number of Conductors: 2
2C14(7) TECK90 600V x300m
Nexans ref. 12010006
- Packaging: Reel (300m)
- Approximate Net Weight: 191 lb/kft
- Approximate Net Weight: 284 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 17.5 mm
- Cable Diameter: 0.69 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 57 kg/km
- Copper Content: 38 lb/kft
- Number of Conductors: 2
30C14(7) TECK90 600V
Nexans ref. 12000088 - Country ref. 432989
- Packaging: Cut to length (m)
- Approximate Net Weight: 995 lb/kft
- Approximate Net Weight: 1481 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 35.5 mm
- Cable Diameter: 1.4 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 597 kg/km
- Copper Content: 401 lb/kft
- Number of Conductors: 30
3C10(7) TECK90 600V
Nexans ref. 12000145
- Packaging: Reel (300m)
- Approximate Net Weight: 339 lb/kft
- Approximate Net Weight: 504 kg/km
- Bare Ground Size (AWG): 12
- Cable Diameter: 20.3 mm
- Cable Diameter: 0.8 inches
- Conductor Diameter: 0.116 inches
- Conductor Diameter (mm): 2.95
- Conductor size (AWG): 10 AWG
- Copper Content: 176 kg/km
- Copper Content: 118 lb/kft
- Number of Conductors: 3
3C10(7) TECK90 600V x300m
Nexans ref. 12013454
- Packaging: Reel (300m)
- Approximate Net Weight: 339 lb/kft
- Approximate Net Weight: 504 kg/km
- Bare Ground Size (AWG): 12
- Cable Diameter: 20.3 mm
- Cable Diameter: 0.8 inches
- Conductor Diameter: 0.116 inches
- Conductor Diameter (mm): 2.95
- Conductor size (AWG): 10 AWG
- Copper Content: 176 kg/km
- Copper Content: 118 lb/kft
- Number of Conductors: 3
3C12(7) TECK90 600V
Nexans ref. 12000141 - Country ref. 422295
- Packaging: Cut to length (m)
- Approximate Net Weight: 280 lb/kft
- Approximate Net Weight: 417 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 18.9 mm
- Cable Diameter: 0.75 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 111 kg/km
- Copper Content: 74 lb/kft
- Number of Conductors: 3
3C12(7) TECK90 600V x300m
Nexans ref. 12010008
- Packaging: Reel (300m)
- Approximate Net Weight: 280 lb/kft
- Approximate Net Weight: 417 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 18.9 mm
- Cable Diameter: 0.72 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 111 kg/km
- Copper Content: 74 lb/kft
- Number of Conductors: 3
3C14(7) TECK90 600V
Nexans ref. 12000133
- Packaging: Cut to length (m)
- Approximate Net Weight: 225 lb/kft
- Approximate Net Weight: 335 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 18 mm
- Cable Diameter: 0.71 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 77 kg/km
- Copper Content: 52 lb/kft
- Number of Conductors: 3
3C14(7) TECK90 600V x300m
Nexans ref. 12013452
- Packaging: Reel (300m)
- Approximate Net Weight: 225 lb/kft
- Approximate Net Weight: 335 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 18 mm
- Cable Diameter: 0.71 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 77 kg/km
- Copper Content: 52 lb/kft
- Number of Conductors: 3
40C14(7) TECK90 600V
Nexans ref. 12000106 - Country ref. 444547
- Packaging: Cut to length (m)
- Approximate Net Weight: 1224 lb/kft
- Approximate Net Weight: 1822 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 38.9 mm
- Cable Diameter: 1.52 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 790 kg/km
- Copper Content: 530 lb/kft
- Number of Conductors: 40
4C10(7) TECK90 600V
Nexans ref. 12000074 - Country ref. 422352
- Packaging: Cut to length (m)
- Approximate Net Weight: 383 lb/kft
- Approximate Net Weight: 570 kg/km
- Bare Ground Size (AWG): 12
- Cable Diameter: 22 mm
- Cable Diameter: 0.87 inches
- Conductor Diameter: 0.116 inches
- Conductor Diameter (mm): 2.95
- Conductor size (AWG): 10 AWG
- Copper Content: 225 kg/km
- Copper Content: 151 lb/kft
- Number of Conductors: 4
4C12(7) TECK90 600V
Nexans ref. 12000142 - Country ref. 422303
- Packaging: Cut to length (m)
- Approximate Net Weight: 298 lb/kft
- Approximate Net Weight: 443 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 20.8 mm
- Cable Diameter: 0.75 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 141 kg/km
- Copper Content: 95 lb/kft
- Number of Conductors: 4
4C14(7) TECK90 600V
Nexans ref. 12000134 - Country ref. 422220
- Packaging: Cut to length (m)
- Approximate Net Weight: 266 lb/kft
- Approximate Net Weight: 396 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 19.3 mm
- Cable Diameter: 0.76 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 96 kg/km
- Copper Content: 64 lb/kft
- Number of Conductors: 4
50C14(7) TECK90 600V
Nexans ref. 12000105 - Country ref. 443796
- Packaging: Cut to length (m)
- Approximate Net Weight: 1468 lb/kft
- Approximate Net Weight: 2184 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 41.7 mm
- Cable Diameter: 1.64 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 982 kg/km
- Copper Content: 659 lb/kft
- Number of Conductors: 50
5C14(7) TECK90 600V
Nexans ref. 12000135 - Country ref. 422238
- Packaging: Cut to length (m)
- Approximate Net Weight: 306 lb/kft
- Approximate Net Weight: 455 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 20 mm
- Cable Diameter: 0.79 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 115 kg/km
- Copper Content: 77 lb/kft
- Number of Conductors: 5
6C10(7) TECK90 600V
Nexans ref. 12000206 - Country ref. 69815
- Packaging: Cut to length (m)
- Approximate Net Weight: 517 lb/kft
- Approximate Net Weight: 770 kg/km
- Bare Ground Size (AWG): 12
- Cable Diameter: 25 mm
- Cable Diameter: 0.99 inches
- Conductor Diameter: 0.116 inches
- Conductor Diameter (mm): 2.95
- Conductor size (AWG): 10 AWG
- Copper Content: 323 kg/km
- Copper Content: 217 lb/kft
- Number of Conductors: 6
6C12(7) TECK90 600V
Nexans ref. 12000143 - Country ref. 422311
- Packaging: Cut to length (m)
- Approximate Net Weight: 402 lb/kft
- Approximate Net Weight: 598 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 23.2 mm
- Cable Diameter: 0.91 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 203 kg/km
- Copper Content: 136 lb/kft
- Number of Conductors: 6
6C14(7) TECK90 600V
Nexans ref. 12000136 - Country ref. 422246
- Packaging: Cut to length (m)
- Approximate Net Weight: 316 lb/kft
- Approximate Net Weight: 471 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 21 mm
- Cable Diameter: 0.83 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 134 kg/km
- Copper Content: 90 lb/kft
- Number of Conductors: 6
7C14(7) TECK90 600V
Nexans ref. 12000137 - Country ref. 422253
- Packaging: Cut to length (m)
- Approximate Net Weight: 338 lb/kft
- Approximate Net Weight: 502 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 21.4 mm
- Cable Diameter: 0.84 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 154 kg/km
- Copper Content: 103 lb/kft
- Number of Conductors: 7
8C12(7) TECK90 600V
Nexans ref. 12000112 - Country ref. 383695
- Packaging: Cut to length (m)
- Approximate Net Weight: 476 lb/kft
- Approximate Net Weight: 708 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 24.7 mm
- Cable Diameter: 0.97 inches
- Conductor Diameter: 0.091 inches
- Conductor Diameter (mm): 2.32
- Conductor size (AWG): 12 AWG
- Copper Content: 264 kg/km
- Copper Content: 177 lb/kft
- Number of Conductors: 8
8C14(7) TECK90 600V
Nexans ref. 12000138 - Country ref. 422261
- Packaging: Cut to length (m)
- Approximate Net Weight: 384 lb/kft
- Approximate Net Weight: 571 kg/km
- Bare Ground Size (AWG): 14
- Cable Diameter: 23.1 mm
- Cable Diameter: 0.91 inches
- Conductor Diameter: 0.072 inches
- Conductor Diameter (mm): 1.84
- Conductor size (AWG): 14 AWG
- Copper Content: 173 kg/km
- Copper Content: 116 lb/kft
- Number of Conductors: 8
Description
Description
Standards
-
ProductCSA C22.2 N° 131; CSA C22.2 N° 174
Even in the most demanding industrial and resource industry applications, Nexans TECK90 cables have proven to have a superior service and maintenance record.
TECK90 Cables utilize low acid gas, low flame spread PVC jacket compounds to ensure maximum safety to personnel and equipment in the event of fire.
Applications
TECK90 Cables, originally developed for use in Canadian mines, are flexible, resistant to mechanical abuse, corrosion resistant, compact and reliable. They are suitable for a wide range of applications, including ALL hazardous locations - Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III.
Limited Smoke Zero Halogen - CSA rated ST1 per CSA 22.2 No. 2556 upon request. Meets the FT4 flame spread test.
Industries such as pulp and paper, chemical, petroleum and other primary and secondary manufacturing industries have used TECK90 Cables, particularly in areas where cables are subject to the risk of mechanical damage and chemical attack.
Commercial applications for TECK90 Cables include apartment buildings and commercial complexes.
TECK90 Cables can be relocated easily because they are rugged and flexible. They can be used in both dry and wet locations in open wiring, in ventilated, non-ventilated and ladder-type cable troughs, in ventilated flexible cableways, and for direct burial.
TECK90 Cables are also suitable for service entrance installations - above and below ground.
Highlights
Nexans TECK90 Cables are:
- Available from stock
- Versatile
- Flexible
- Resistant to Mechanical Abuse and Corrosion
- Compact and Reliable
- "HL" and "FT4" Rated per CSA
- 90°C to -40°C
- Low Acid Gas (AG14)
- Inner and outer jackets are sunlight resistant
- LEAD FREE
- RoHS compliant
- ST1 rating available upon request
Marking and Identification
Marking and Identification
The inner jackets of Nexans TECK90 cables are printed: SUN RES.
The outer jackets of Nexans TECK90 cables are printed: (mon/year) NEXANS TECK90 XLPE (-40°C) CSA LL19376 F HL FT4 AG14 SUN RES along with conductor size, number of conductors and sequential metre marking.
Optional ST1 marking
Conductor Identification:
2 Conductors: Black, White
3 Conductors: Red, Black, Blue
4 Conductors: Red, Black, Blue, White
5 or More Conductors: Black with Number Coding
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Caution Notice
In case of fire, well maintained early warning smoke detectors will give an alarm long before non-metallic coverings become combustible. However, in spite of the widespread and long-standing use of PVC in residential and commercial buildings, all purchasers of PVC insulated/ jacketed products should be aware of the following:
- Non-metallic coverings of electrical cables can burn and may transmit fire when ignited.
- Burning non-metallic coverings may emit acid gases which are toxic and may generate dense smoke.
- Emission of acid gases may corrode metal in the vicinity; e.g. sensitive instruments and reinforcing rods in cement.
Related products
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
