RPVU90 Solar/Photovoltaic

Products

10(19) RPVU90 CU BLK 2KV

Nexans ref. 12009956

  • Packaging: Reel (1500m)
  • Conductor material: Copper
  • Jacket Colour: Black
  • Approximate net weight: 68.589 kg/km
  • Cable Diameter: 5.9 mm
  • Conductor size (AWG): 10 AWG



10(19) RPVU90 CU RED 2KV

Nexans ref. 12013393

  • Packaging: Reel (1500m)
  • Conductor material: Copper
  • Jacket Colour: Red
  • Approximate net weight: 68.589 kg/km
  • Cable Diameter: 5.9 mm
  • Conductor size (AWG): 10 AWG



10(7) RPVU90 CU BLK 2kV

Nexans ref. 12009954

  • Packaging: Reel (1500m)
  • Conductor material: Copper
  • Jacket Colour: Black
  • Approximate net weight: 69.307 kg/km
  • Cable Diameter: 6.0 mm
  • Conductor size (AWG): 10 AWG



10(7) RPVU90 CU RED 2kV

Nexans ref. 12013428

  • Packaging: Reel (1500m)
  • Conductor material: Copper
  • Jacket Colour: Red
  • Approximate net weight: 69.307 kg/km
  • Cable Diameter: 6.0 mm
  • Conductor size (AWG): 10 AWG



500 RPVU90 AL BLK 2kV

Nexans ref. 12014661

  • Packaging: Reel (1500m)
  • Conductor material: Aluminum 8000 series
  • Jacket Colour: Black
  • Approximate net weight: 887.366 kg/km
  • Cable Diameter: 24.6 mm
  • Conductor size (AWG): 500 MCM



500 RPVU90 AL RED 2kV

Nexans ref. 12014660

  • Packaging: Reel (1500m)
  • Conductor material: Aluminum 8000 series
  • Jacket Colour: Red
  • Approximate net weight: 887.366 kg/km
  • Cable Diameter: 24.6 mm
  • Conductor size (AWG): 500 MCM



750 RPVU90 AL BLK 2KV

Nexans ref. 12013426

  • Packaging: Reel (1500m)
  • Conductor material: Aluminum 8000 series
  • Jacket Colour: Black
  • Approximate net weight: 1039.598 kg/km
  • Cable Diameter: 29.7 mm
  • Conductor size (AWG): 750 MCM



750 RPVU90 AL RED 2KV

Nexans ref. 12013427

  • Packaging: Reel (1500m)
  • Conductor material: Aluminum 8000 series
  • Jacket Colour: Red
  • Approximate net weight: 1039.598 kg/km
  • Cable Diameter: 29.7 mm
  • Conductor size (AWG): 750 MCM



8(19) RPVU90 CU BLK 2kV

Nexans ref. 12013409

  • Packaging: Reel (1500m)
  • Conductor material: Copper
  • Jacket Colour: Black
  • Approximate net weight: 111.766 kg/km
  • Cable Diameter: 7.8 mm
  • Conductor size (AWG): 8 AWG



8(19) RPVU90 CU RED 2kV

Nexans ref. 12013420

  • Packaging: Reel (1500m)
  • Conductor material: Copper
  • Jacket Colour: Red
  • Approximate net weight: 111.766 kg/km
  • Cable Diameter: 7.8 mm
  • Conductor size (AWG): 8 AWG



Description

Description

Standards

  • National
    CSA C22.2 N° 271; CSA C22.2 N° 38

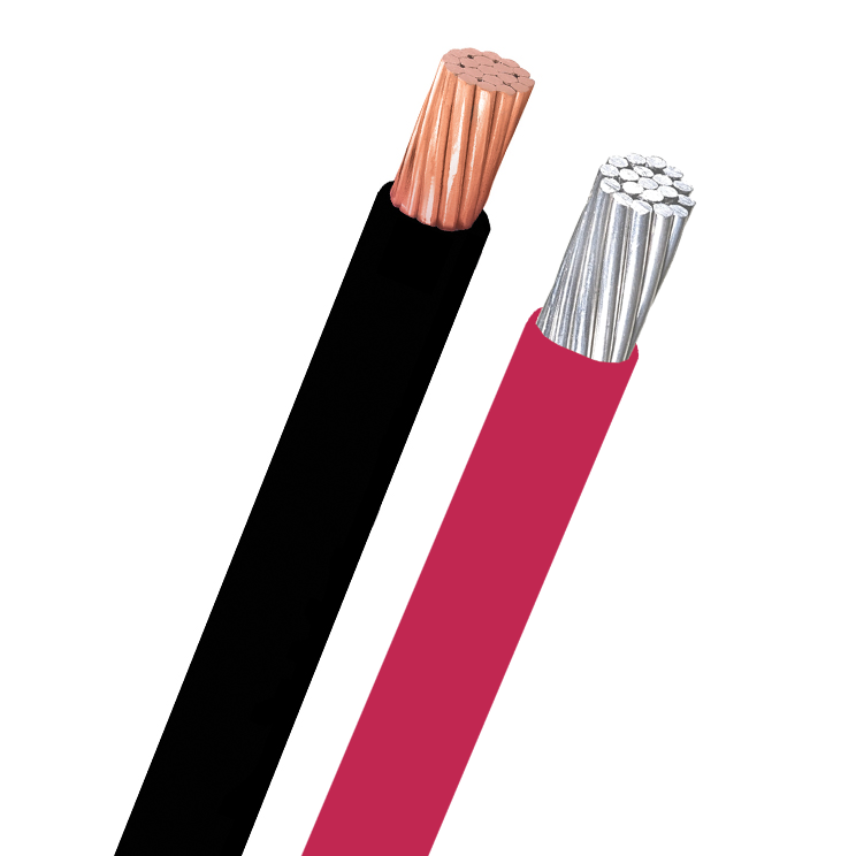

RPVU90 cables offer exceptional performance, easy installation and long-term reliability for DC and AC connections. They link photovoltaic panels on rooftops or solar farms, and also connect them to the array box (if one exists), and to the inverter which transforms DC solar energy into usable AC electricity. These cables have a wet and dry temperature rating of 90°C, are UV resistant, may be direct buried, and are certified as CSA type RPVU90.

Application


Nexans RPVU90 cables may be installed indoors or outdoors, in raceways and conduits, both above and below ground, and may be direct buried. Direct buried installations must comply with CE Code Rules 12-012 and 4-004. They are 90ºC, 2 kV rated, and suitable for use in a photovoltaic system.



Type RPVU90 cables are for use on the DC and AC side of a photovoltaic system, suitable for installation in both wet and dry locations, and may be exposed to sunlight.

Nexans RPVU90 cables are RoHS Compliant.

Construction


Conductor:



Aluminum:

  • sizes from #1/0 AWG to 1000 kcmil, stranded
  • compact stranded AA-8000 series aluminum conductor material (ACM) per ASTM B801 Class B or ASTM B836

Copper:

  • sizes from #14 AWG to 1000 kcmil, solid or stranded
  • bare, stranded annealed per ASTM B8 Class B compressed



Insulation:  EXELENE® cross-linked polyethylene (XLPE) insulation per CSA C22.2 No. 271. Sunlight resistant as well as heat, moisture and abrasion resistant.



- Cables are CSA certified as Type RPVU90.

- Temperature rating of 90ºC dry and wet

- Marked -40ºC

- May be direct buried

- Sunlight resistant

- RoHS Compliant



Options:

  • Class C Stranding (Copper only)


Specifications:

Meets CSA C22.2 No. 271 Photovoltaic Cables

Meets CSA 22.2 No. 38 Thermoset Insulated Wires and Cables

CSA File Number: LL23462 Class 5721 02



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Insulation
XLPE

Electrical characteristics

Electrical characteristics

Maximum operating voltage
2000 V

Usage characteristics

Usage characteristics

Maximum operating temperature
90 °C
Minimum installation temperature
-40 °C
