Products

2C10(1) NMWU CU

Nexans ref. 12000380 - Country ref. 602540

  • Packaging: Reel (150m)
  • Number of conductors: 2
  • Approximate Net Weight: 234 kg/km
  • Bare Ground Size (AWG): 12
  • Conductor Diameter (mm): 2.95
  • Conductor size (AWG): 10
  • External dimensions: 7.3 x 15.1 mm
  • Jacket Thickness: 0.76 mm
  • Nominal insulation thickness: 1.52 mm
  • Number of Strands: 1



2C12(1) NMWU CU

Nexans ref. 12000091 - Country ref. 438762

  • Packaging: Spool (75m)
  • Number of conductors: 2
  • Approximate Net Weight: 173 kg/km
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 2.32
  • Conductor size (AWG): 12
  • External dimensions: 6.8 x 13.6 mm
  • Jacket Thickness: 0.76 mm
  • Nominal insulation thickness: 1.52 mm
  • Number of Strands: 1



2C12(1) NMWU CU

Nexans ref. 12000092 - Country ref. 438770

  • Packaging: Reel (150m)
  • Number of conductors: 2
  • Approximate Net Weight: 173 kg/km
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 2.32
  • Conductor size (AWG): 12
  • External dimensions: 6.8 x 13.6 mm
  • Jacket Thickness: 0.76 mm
  • Nominal insulation thickness: 1.52 mm
  • Number of Strands: 1



2C14(1) NMWU CU

Nexans ref. 12000265 - Country ref. 209387

  • Packaging: Reel (150m)
  • Number of conductors: 2
  • Approximate Net Weight: 137 kg/km
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 1.84
  • Conductor size (AWG): 14
  • External dimensions: 6.3 x 12.7 mm
  • Jacket Thickness: 0.76 mm
  • Nominal insulation thickness: 1.52 mm
  • Number of Strands: 1



2C6(7) NMWU CU

Nexans ref. 12000233 - Country ref. 253443

  • Packaging: Reel (150m)
  • Number of conductors: 2
  • Approximate Net Weight: 371 kg/km
  • Bare Ground Size (AWG): 8
  • Conductor Diameter (mm): 4.67
  • Conductor size (AWG): 6
  • External dimensions: 11.6 x 23.5 mm
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 2.29 mm
  • Number of Strands: 7



2C8(7) NMWU CU

Nexans ref. 12000096 - Country ref. 438879

  • Packaging: Reel (150m)
  • Number of conductors: 2
  • Approximate Net Weight: 402 kg/km
  • Bare Ground Size (AWG): 10
  • Conductor Diameter (mm): 3.71
  • Conductor size (AWG): 8
  • External dimensions: 9.9 x 20.0 mm
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 1.91 mm
  • Number of Strands: 7



3C10(1) NMWU CU

Nexans ref. 12000199 - Country ref. 29074

  • Packaging: Reel (150m)
  • Number of conductors: 3
  • Approximate Net Weight: 306 kg/km
  • Bare Ground Size (AWG): 12
  • Conductor Diameter (mm): 2.95
  • Conductor size (AWG): 10
  • External dimensions: 13.9 mm
  • Jacket Thickness: 0.76 mm
  • Nominal insulation thickness: 1.52 mm
  • Number of Strands: 1



3C12(1) NMWU CU

Nexans ref. 12000381 - Country ref. 602839

  • Packaging: Reel (150m)
  • Number of conductors: 3
  • Approximate Net Weight: 221 kg/km
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 2.32
  • Conductor size (AWG): 12
  • External dimensions: 13.9 mm
  • Jacket Thickness: 0.76 mm
  • Nominal insulation thickness: 1.52 mm
  • Number of Strands: 1



3C14(1) NMWU CU

Nexans ref. 12000090 - Country ref. 438739

  • Packaging: Spool (75m)
  • Number of conductors: 3
  • Approximate Net Weight: 181 kg/km
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 1.84
  • Conductor size (AWG): 14
  • External dimensions: 11.9 mm
  • Jacket Thickness: 0.76 mm
  • Nominal insulation thickness: 1.52 mm
  • Number of Strands: 1



3C6(7) NMWU CU

Nexans ref. 12000174 - Country ref. 190710

  • Packaging: Reel (150m)
  • Number of conductors: 3
  • Approximate Net Weight: 722 kg/km
  • Bare Ground Size (AWG): 8
  • Conductor Diameter (mm): 4.67
  • Conductor size (AWG): 6
  • External dimensions: 22.3 mm
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 2.29 mm
  • Number of Strands: 7



3C8(7) NMWU CU

Nexans ref. 12000499 - Country ref. 508960

  • Packaging: Reel (75m)
  • Number of conductors: 3
  • Approximate Net Weight: 507 kg/km
  • Bare Ground Size (AWG): 10
  • Conductor Diameter (mm): 3.71
  • Conductor size (AWG): 8
  • External dimensions: 18.6 mm
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 1.91 mm
  • Number of Strands: 7



3C8(7) NMWU CU

Nexans ref. 12000097 - Country ref. 438911

  • Packaging: Reel (300m)
  • Number of conductors: 3
  • Approximate Net Weight: 507 kg/km
  • Bare Ground Size (AWG): 10
  • Conductor Diameter (mm): 3.71
  • Conductor size (AWG): 8
  • External dimensions: 18.6 mm
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 1.91 mm
  • Number of Strands: 7



Description

Description

Standards

  • Product
    CSA C22.2 N° 48

CSA File LL23462 Class 5821 02

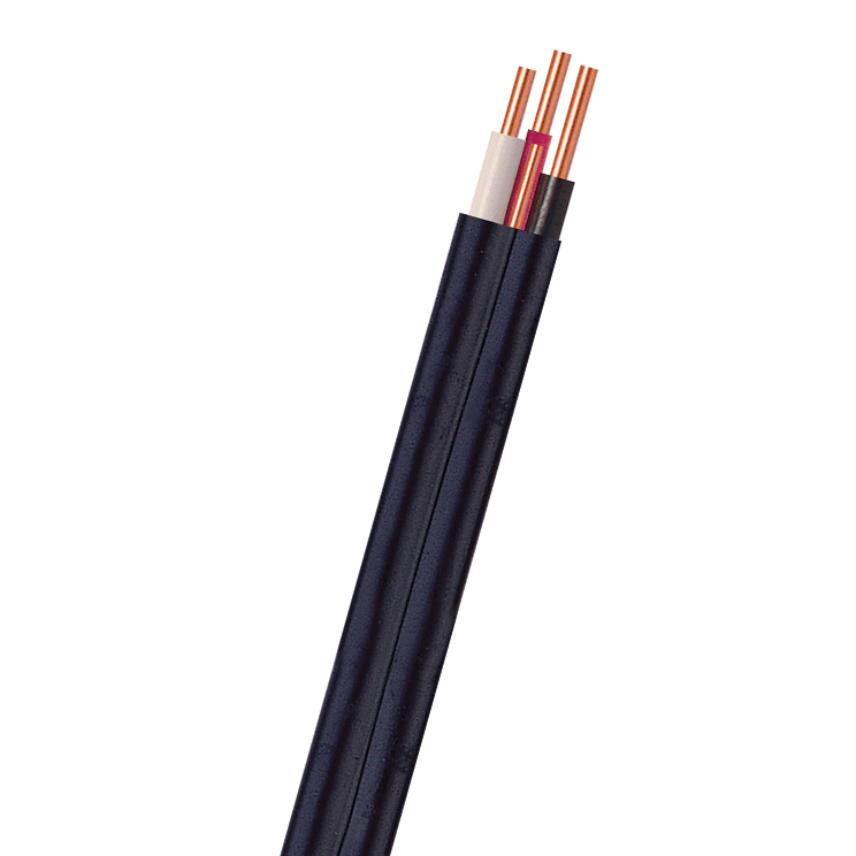

Two or three copper conductors with extra thickness of 60°C PVC insulation. Bare bonding wire and an overall sunlight resistant PVC jacket. Rated 300 volts.



Jacket Colours:

Black is standard and is sunlight resistant.

White jackets are available on request.  These can be sunlight resistant, if required.



Insulation Colours:

2 Conductors - Black, White

3 Conductors - Black, Red, White

Application

  • For direct earth burial (with protection as required by the inspection authority).
  • For wiring exposed to the weather. For Category 1 and 2 locations see Section 22 of the Canadian Electrical Code including barns, stables, etc.
  • For open and concealed wiring in wet or dry locations where not exposed to mechanical injury.
  • Minimum recommended handling temperature minus 25°C (except for 3 conductor cables at minus 10°C) with suitable handling procedures.
  • Maximum conductor temperature 60°C.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor Material
Copper
Insulation
PVC
Insulation Colour
Black

Electrical characteristics

Electrical characteristics

Maximum operating voltage
300 V

Usage characteristics

Usage characteristics

Maximum operating temperature
60 °C
Minimum installation temperature
-25 °C
