AC90

Products

2C10(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000700 - Country ref. 623694

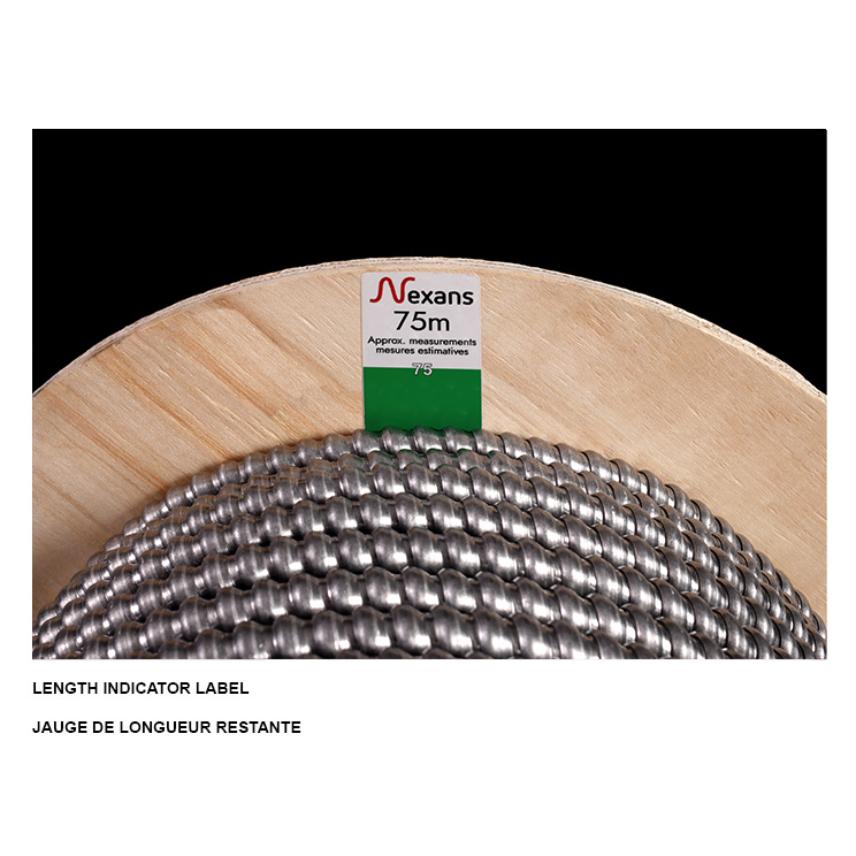

  • Packaging: Reel (75m)
  • Number of conductors: 2
  • Conductor Material: Copper
  • Conductor size (AWG): 10
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 13.84 mm
  • Approximate Net Weight: 216 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 12
  • Conductor Diameter (mm): 2.95



2C10(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000295 - Country ref. 219790

  • Packaging: Reel (150m)
  • Number of conductors: 2
  • Conductor Material: Copper
  • Conductor size (AWG): 10
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 13.84 mm
  • Approximate Net Weight: 216 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 12
  • Conductor Diameter (mm): 2.95



2C12(1) AC90 CU RED/BLK ST1

Nexans ref. 12001326 - Country ref. 633727

  • Packaging: Reel (75m)
  • Number of conductors: 2
  • Conductor Material: Copper
  • Conductor size (AWG): 12
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 12.66 mm
  • Approximate Net Weight: 171 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 2.32



2C12(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000118 - Country ref. 391953

  • Packaging: Reel (75m)
  • Number of conductors: 2
  • Conductor Material: Copper
  • Conductor size (AWG): 12
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 12.66 mm
  • Approximate Net Weight: 171 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 2.32



2C12(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000495 - Country ref. 508598

  • Packaging: Reel (150m)
  • Number of conductors: 2
  • Conductor Material: Copper
  • Conductor size (AWG): 12
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 12.66 mm
  • Approximate Net Weight: 171 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 2.32



2C14(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000116 - Country ref. 391938

  • Packaging: Reel (75m)
  • Number of conductors: 2
  • Conductor Material: Copper
  • Conductor size (AWG): 14
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 11.81 mm
  • Approximate Net Weight: 131 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 1.84



2C14(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000493 - Country ref. 508523

  • Packaging: Reel (150m)
  • Number of conductors: 2
  • Conductor Material: Copper
  • Conductor size (AWG): 14
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 11.81 mm
  • Approximate Net Weight: 131 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 1.84



3C10(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000701 - Country ref. 623702

  • Packaging: Reel (75m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 10
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 14.5 mm
  • Approximate Net Weight: 277 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 12
  • Conductor Diameter (mm): 2.95



3C10(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000272 - Country ref. 219808

  • Packaging: Reel (150m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 10
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 14.5 mm
  • Approximate Net Weight: 277 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 12
  • Conductor Diameter (mm): 2.95



3C12(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000702 - Country ref. 623710

  • Packaging: Reel (75m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 12
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 13.34 mm
  • Approximate Net Weight: 203 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 2.32



3C12(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000496 - Country ref. 508622

  • Packaging: Reel (150m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 12
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 13.34 mm
  • Approximate Net Weight: 203 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 2.32



3C14(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000117 - Country ref. 391946

  • Packaging: Reel (75m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 14
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 12.34 mm
  • Approximate Net Weight: 158 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 1.84



3C14(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000494 - Country ref. 508556

  • Packaging: Reel (150m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 14
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 12.34 mm
  • Approximate Net Weight: 158 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 1.84



3C2(7) AC90 CU ST1 ZERO HAL

Nexans ref. 12001230

  • Packaging: Cut to length (m)
  • Number of conductors: 3
  • Conductor Material: Copper or Aluminum
  • Conductor size (AWG): 2
  • Nominal insulation thickness: 1.14 mm
  • Cable Diameter: 26.9 mm
  • Approximate Net Weight: 1410 kg/km
  • Number of Strands: 7
  • Bare Ground Size (AWG): 6
  • Conductor Diameter (mm): 6.81



3C3(7) AC90 CU ST1 ZERO HAL

Nexans ref. 12001231 - Country ref. 654020

  • Packaging: Reel (150m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 3
  • Nominal insulation thickness: 1.14 mm
  • Cable Diameter: 25.96 mm
  • Approximate Net Weight: 1115 kg/km
  • Number of Strands: 7
  • Bare Ground Size (AWG): 6
  • Conductor Diameter (mm): 6.60



3C3(7) AC90 CU ST1 ZERO HAL

Nexans ref. 12001219 - Country ref. 653071

  • Packaging: Cut to length (m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 3
  • Nominal insulation thickness: 1.14 mm
  • Cable Diameter: 24.96 mm
  • Approximate Net Weight: 1115 kg/km
  • Number of Strands: 7
  • Bare Ground Size (AWG): 6
  • Conductor Diameter (mm): 6.60



3C6(7) AC90 CU ST1 ZERO HAL

Nexans ref. 12001397 - Country ref. 654012

  • Packaging: Reel (150m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 6
  • Nominal insulation thickness: 1.14 mm
  • Cable Diameter: 21.08 mm
  • Approximate Net Weight: 649 kg/km
  • Number of Strands: 7
  • Bare Ground Size (AWG): 8
  • Conductor Diameter (mm): 4.67



3C6(7) AC90 CU ST1 ZERO HAL

Nexans ref. 12001584 - Country ref. 660157

  • Packaging: Reel (300m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 6
  • Nominal insulation thickness: 1.14 mm
  • Cable Diameter: 21.08 mm
  • Approximate Net Weight: 649 kg/km
  • Number of Strands: 7
  • Bare Ground Size (AWG): 8
  • Conductor Diameter (mm): 4.67



3C8(7) AC90 CU ST1 ZERO HAL

Nexans ref. 12000497 - Country ref. 508713

  • Packaging: Reel (150m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 8
  • Nominal insulation thickness: 1.14 mm
  • Cable Diameter: 18.8 mm
  • Approximate Net Weight: 508 kg/km
  • Number of Strands: 7
  • Bare Ground Size (AWG): 10
  • Conductor Diameter (mm): 3.71



3C8(7) AC90 CU ST1 ZERO HAL

Nexans ref. 12000498 - Country ref. 508721

  • Packaging: Reel (300m)
  • Number of conductors: 3
  • Conductor Material: Copper
  • Conductor size (AWG): 8
  • Nominal insulation thickness: 1.14 mm
  • Cable Diameter: 18.8 mm
  • Approximate Net Weight: 508 kg/km
  • Number of Strands: 7
  • Bare Ground Size (AWG): 10
  • Conductor Diameter (mm): 3.71



4C10(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12001328 - Country ref. 633784

  • Packaging: Reel (75m)
  • Number of conductors: 4
  • Conductor Material: Copper
  • Conductor size (AWG): 10
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 15.75 mm
  • Approximate Net Weight: 338 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 12
  • Conductor Diameter (mm): 2.95



4C12(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12001327 - Country ref. 633735

  • Packaging: Reel (75m)
  • Number of conductors: 4
  • Conductor Material: Copper
  • Conductor size (AWG): 12
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 14.22 mm
  • Approximate Net Weight: 243 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 2.32



4C12(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000197 - Country ref. 28589

  • Packaging: Reel (150m)
  • Number of conductors: 4
  • Conductor Material: Copper
  • Conductor size (AWG): 12
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 14.22 mm
  • Approximate Net Weight: 243 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 2.32



4C14(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12001325 - Country ref. 633719

  • Packaging: Reel (75m)
  • Number of conductors: 4
  • Conductor Material: Copper
  • Conductor size (AWG): 14
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 13.26 mm
  • Approximate Net Weight: 190 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 1.84



4C14(1) AC90 CU ST1 ZERO HAL

Nexans ref. 12000196 - Country ref. 28571

  • Packaging: Reel (150m)
  • Number of conductors: 4
  • Conductor Material: Copper
  • Conductor size (AWG): 14
  • Nominal insulation thickness: 0.76 mm
  • Cable Diameter: 13.26 mm
  • Approximate Net Weight: 190 kg/km
  • Number of Strands: 1
  • Bare Ground Size (AWG): 14
  • Conductor Diameter (mm): 1.84



Description

Description

Standards

  • Product
    CSA C22.2 N° 2556; CSA C22.2 N° 51

CSA File #LL23462 Class 5811 01

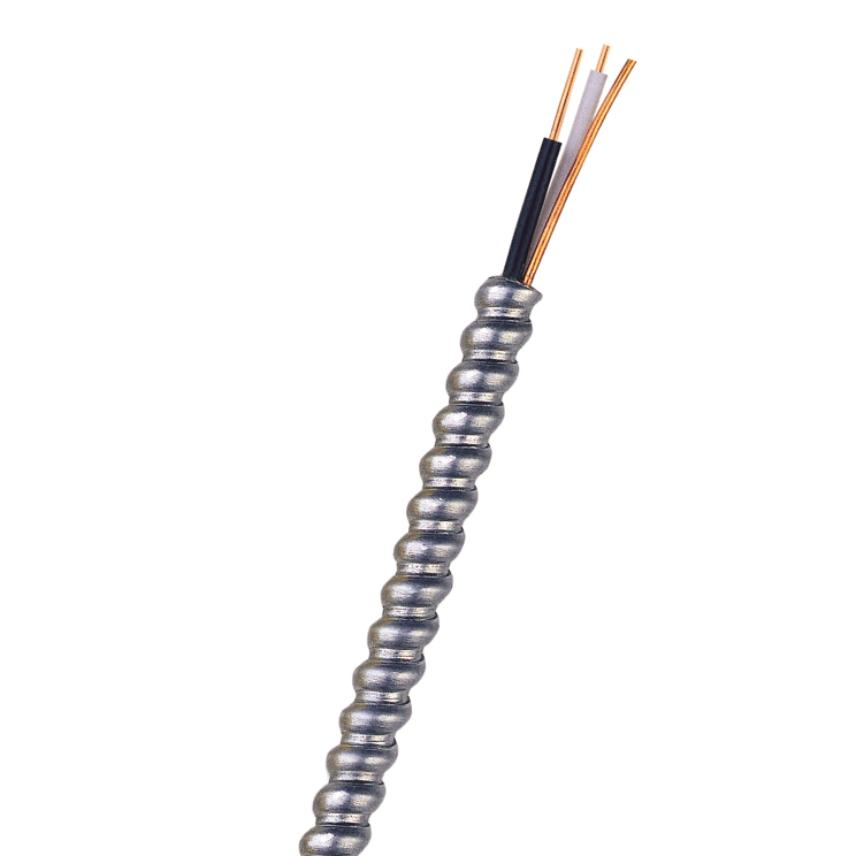

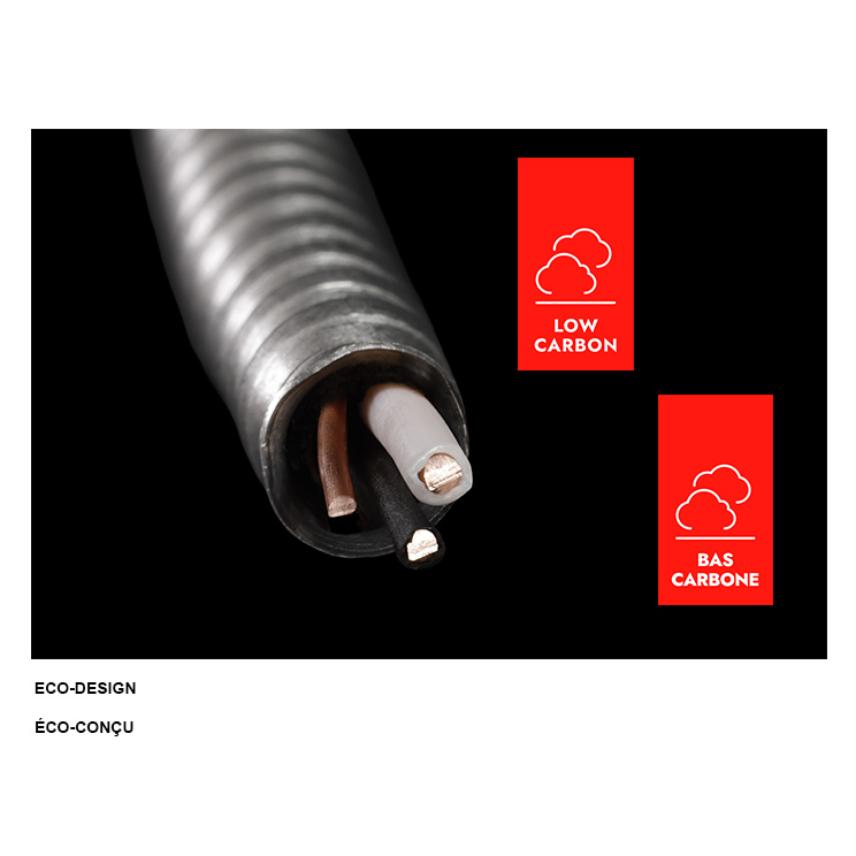

Two, three or four copper or aluminum conductor material (ACM)  conductors with low temperature EXELENE® cross-linked polyethylene insulation (RW90 XLPE) and bare copper or aluminum bonding wire. Conductor assembly paper wrapped and covered with bare interlocked aluminum armour. Rated 600 volts.  LEAD FREE and RoHS compliant.





Insulation Colour Coding:

2 Conductors - Black, White OR Black, Red
3 Conductors - Black, Red, White
4 Conductors - Black, Red, Blue, White





Application





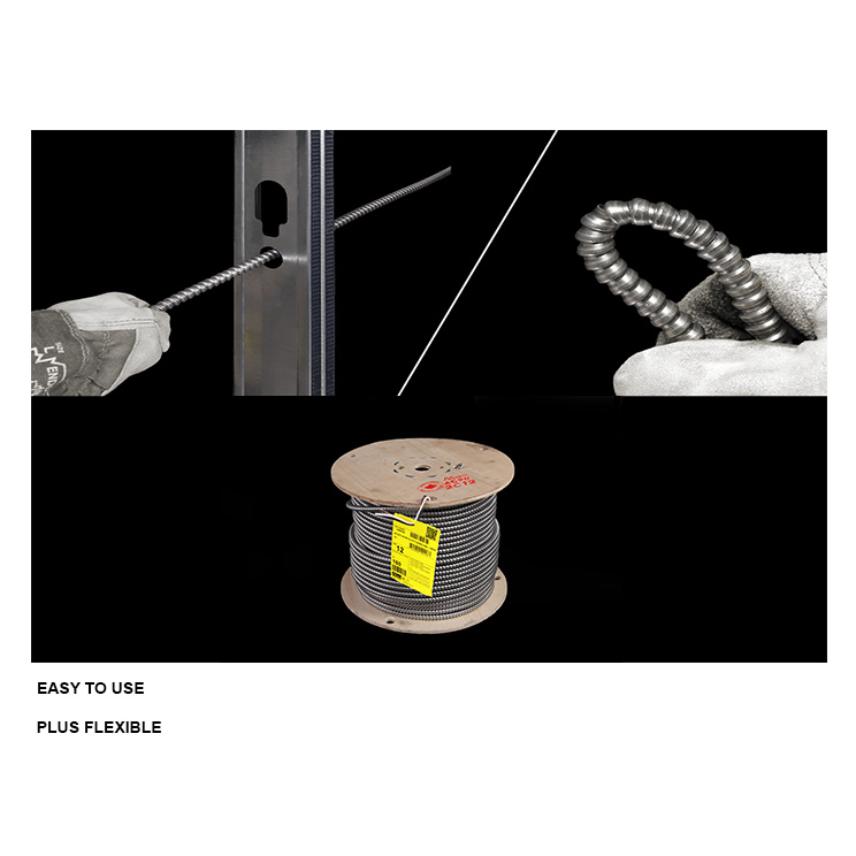

  • For open and concealed wiring in dry locations only.
  • For use in cabletroughs and ventilated flexible cableways in dry locations only.
  • Minimum recommended installation temperature minus 40°C (with suitable handling procedures).
  • Maximum conductor temperature 90°C.
  • Approved for use with ceiling fixtures.
  • Armoured cable for commercial, industrial and apartment use.
  • Limited Smoke Zero Halogen - CSA rated ST1 per CSA 22.2 No. 2556.  Meets the FT4 flame spread test.

CSA File #LL23462 Class 5811 01



Two, three or four copper or aluminum conductor material (ACM)  conductors with low temperature EXELENE® cross-linked polyethylene insulation (RW90 XLPE) and bare copper or aluminum bonding wire. Conductor assembly paper wrapped and covered with bare interlocked aluminum armour. Rated 600 volts.  LEAD FREE and RoHS compliant.





Insulation Colour Coding:

2 Conductors - Black, White OR Black, Red
3 Conductors - Black, Red, White
4 Conductors - Black, Red, Blue, White





Application





  • For open and concealed wiring in dry locations only.
  • For use in cabletroughs and ventilated flexible cableways in dry locations only.
  • Minimum recommended installation temperature minus 40°C (with suitable handling procedures).
  • Maximum conductor temperature 90°C.
  • Approved for use with ceiling fixtures.
  • Armoured cable for commercial, industrial and apartment use.
  • Limited Smoke Zero Halogen - CSA rated ST1 per CSA 22.2 No. 2556.  Meets the FT4 flame spread test.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Insulation
XLPE

Electrical characteristics

Electrical characteristics

Maximum operating voltage
600 V

Usage characteristics

Usage characteristics

Maximum operating temperature
90 °C
Minimum installation temperature
-40 °C

Resources

Resources

Related products

Commercial

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
