CORUSHIELD® Shielded Power Cable
CORUSHIELD® Shielded Power Cable
CORUSHIELD® Shielded Power Cable 5 to 46 KV
Read moreDescription
Description
Standards
-
NationalCSA C68.5

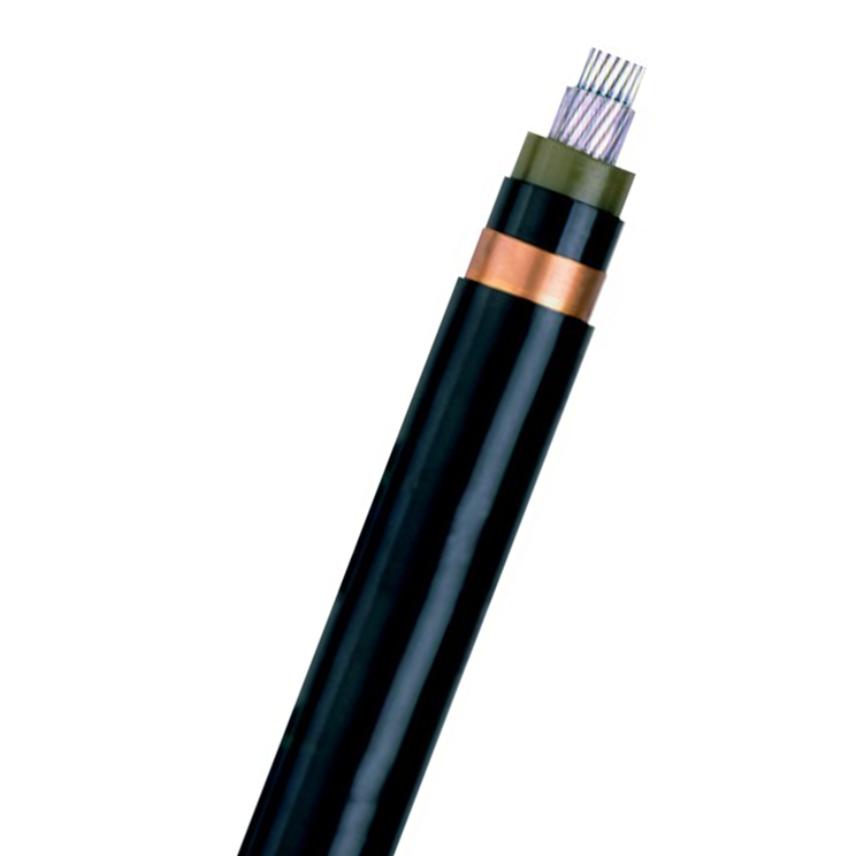

Nexans CORUSHIELD® Shielded Power Cables are single conductor metallic shielded power cables available in voltage classes from 5 kV to 46 kV. These cables are manufactured using the latest in clean compound handling technology.
CORUSHIELD® Shielded Power Cables has a semiconducting crosslinked polyolefin (XLPO) conductor shield, a tree retardant crosslinked polyethylene (TRXLPE) insulation and a strippable semiconducting crosslinked polyolefin (XLPO) insulation shield.
These cables are LEAD FREE and RoHS compliant.
FT 1 flame rating available on request.
Application
- CORUSHIELD® Shielded Power Cables are predominantly used for primary underground distribution 5-46 kV, single phase, or three phase applications where the fault requirements of concentric neutral is not required.
- CORUSHIELD® Shielded Power Cables are suitable for continuous operation of 90°C in wet or dry locations
- Can be direct buried, in buried ducts, and where exposed to sunlight.
- 105°C rated TRXLPE insulation is available upon request.
- CORUSHIELD® Shielded Power Cables are not TC rated and cannot be used in cable tray in an installation subject to the requirements of the Canadian Electrical Code.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
-
Insulation
TR-XLPE (Tree-Retardant Cross-linked Polyethylene)
Resources
Resources
Documentation
ENERGEX® SP Shielded Power Design
pdf — 31.4 kB
ENERGEX® SP Shielded Power Insulation
pdf — 83.2 kB
ENERGEX® SP Shielded Power Jacket
pdf — 31.8 kB
ENERGEX® SP Shielded Power Installation
pdf — 294.0 kB
ENERGEX® SP Shielded Power Field Tests
pdf — 103.9 kB
