3C2(7) NMD90 ACM CANADEX
Nexans ref. 12001384 - Country ref. 649871
- Packaging: Reel (150m)
- Approximate net weight: 606.2 kg/km
- Cable Diameter: 23.5 mm
- Conductor size (AWG): 2
3C2(7) NMD90 ACM CT CANADEX
Nexans ref. 12001293 - Country ref. 645861
- Packaging: Reel (300m)
- Approximate net weight: 606.2 kg/km
- Cable Diameter: 23.54 mm
- Conductor size (AWG): 6
3C2(7) NMD90 ACM CT CANADEX
Nexans ref. 12001475 - Country ref. 661655
- Packaging: Reel (1500m)
- Approximate net weight: 606.2 kg/km
- Cable Diameter: 23.54 mm
- Conductor size (AWG): 4
3C6(7) NMD90 ACM CANADEX
Nexans ref. 12001383 - Country ref. 649855
- Packaging: Reel (150m)
- Approximate net weight: 284.87 kg/km
- Cable Diameter: 16.6 mm
- Conductor size (AWG): 6
3C6(7) NMD90 ACM CT CANADEX
Nexans ref. 12001474 - Country ref. 661654
- Packaging: Reel (1500m)
- Approximate net weight: 284.87 kg/km
- Cable Diameter: 16.6 mm
- Conductor size (AWG): 2
3C6(7)NMD90 ACM CT CANADEX
Nexans ref. 12001374 - Country ref. 645820
- Packaging: Reel (300m)
- Approximate net weight: 284.87 kg/km
- Cable Diameter: 16.6 mm
- Conductor size (AWG): 6
Description
Description
Standards
-
NationalCSA C22.2 N° 48
CANADEX® NMD90
CSA File #LL23462 Class 5821 02

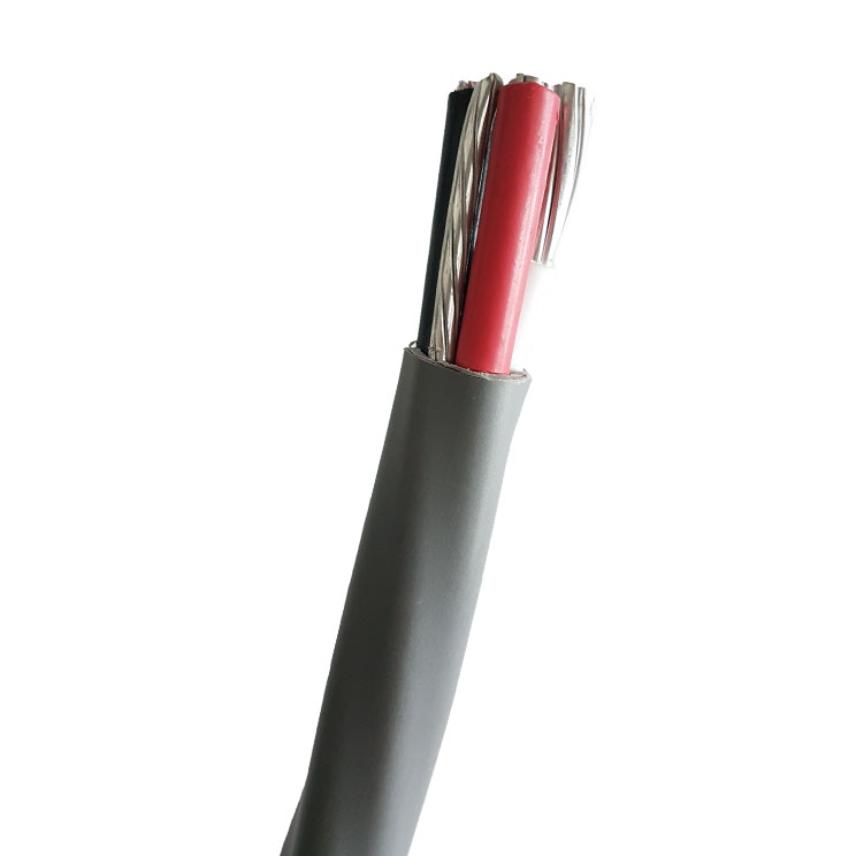

Three ACM aluminum conductors with 90ºC PVC Nylon T90 Nylon insulation. Bare bonding wire an overall jacket of moisture resistant and flame retardant PVC, with FT1 rating.
CANADEX® NMD90 Jacket Colours: Grey
CANADEX® NMD90 Insulation Colours: Black, Red, White
CANADEX® NMD90 Applications:
- For open or concealed wiring in dry or damp locations where not exposed to mechanical injury.
- Maximum conductor temperature 90°C.
- Approved for use with ceiling fixtures.
- Minimum recommended handling temperature minus 10°C for 3 conductor cables (with suitable handling procedures).
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Insulation
PVC/Nylon
Jacket Colour
Grey
Dimensional characteristics
Dimensional characteristics
Number of strands
7
Electrical characteristics
Electrical characteristics
Maximum operating voltage
300 V
Usage characteristics
Usage characteristics
Maximum operating temperature
90 °C
Minimum installation temperature
-10 °C
