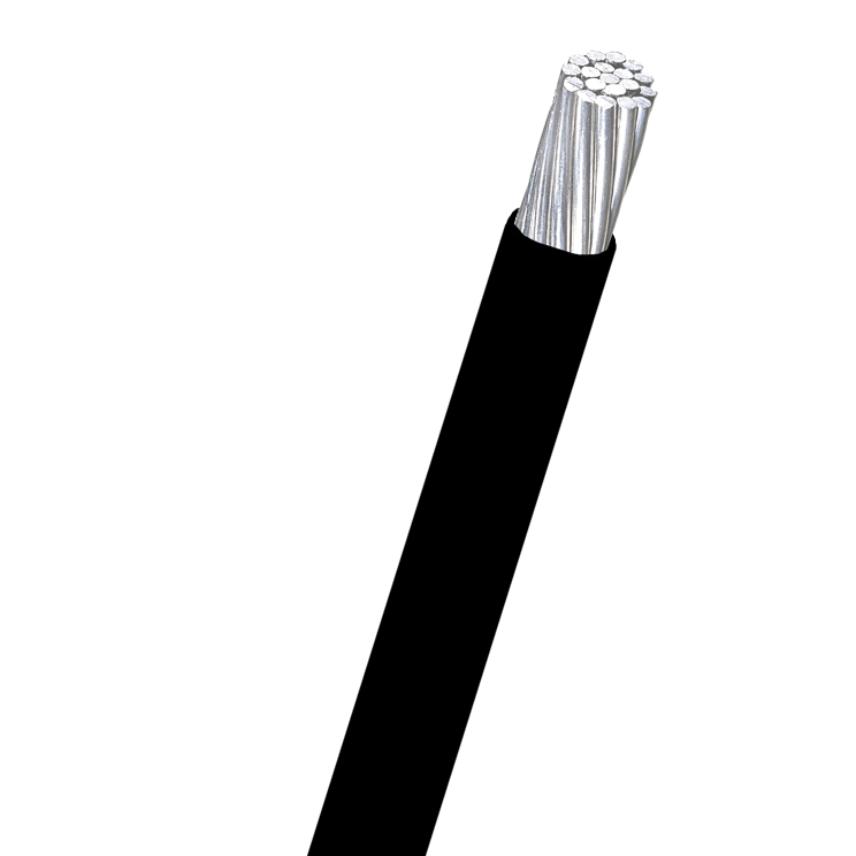

3/0 18W CT AL POLY 600V

Description

Description

Standards

  • National
    CSA C68.9; ICEA S-70-547

Application
Nexans Single Conductor Polyethylene-Covered Line Wire is rated for a 75°C normal conductor temperature, and is intended for use in overhead distribution circuits operating at primary or secondary voltages. The covering provides circuit protection against momentary contact with other conductors or trees. Because the covering carries no voltage rating, the conductors must be installed on insulators adequate for the intended service voltage. The user should consider the dielectric compatibility of the covering, insulator and conductor/insulator tie.



Conductor Construction
Conductors are available in the following constructions:

  • Aluminum alloy 6101 (A2), round concentric-lay stranded (AASC)
  • Aluminum alloy 1350 hard drawn (A1), round concentric-lay stranded (ASC)
  • Aluminum conductor, steel reinforced (A1/S1A), round concentric-lay stranded (ACSR)
  • Copper, medium-hard drawn, round concentric-lay stranded
  • Aluminum alloy 1350 hard drawn, compact round stranded (A1F)
  • Aluminum conductor, steel reinforced, compact round stranded (A1F/S1A)



Covering Material
The covering material is either black linear low-density polyethylene or black medium- density polyethylene to ANSI/ICEA S-70-547 and CSA C68.9.  Alternatively, a covering of black low-density crosslinked polyethylene (XLPE) with a 90°C temperature rating is available upon request.



Markings
The covering will bear the following surface markings:

  • Nexans
  • Year / Month of Manufacture
  • Conductor Size and Material
  • Covering Material
  • Product Designation "Line Wire"
  • Sunlight Resistant
  • "INH" to indicate presence of conductor corrosion inhibitor, if applicable



Standard
Nexans Overhead Covered Line Wire is manufactured and tested in accordance with ANSI/ICEA S-70-547 and CSA C68.9.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper or Aluminum
Insulation
-
Jacket Colour
-

Dimensional characteristics

Dimensional characteristics

Approximate net weight
306.1 kg/km
Cable Diameter
14.51 mm
Conductor cross-section
- kcmil
Conductor size (AWG)
3/0
Number of strands
18

Electrical characteristics

Electrical characteristics

Maximum operating voltage
- V

Usage characteristics

Usage characteristics

Maximum operating temperature
75 °C
Minimum installation temperature
- °C
