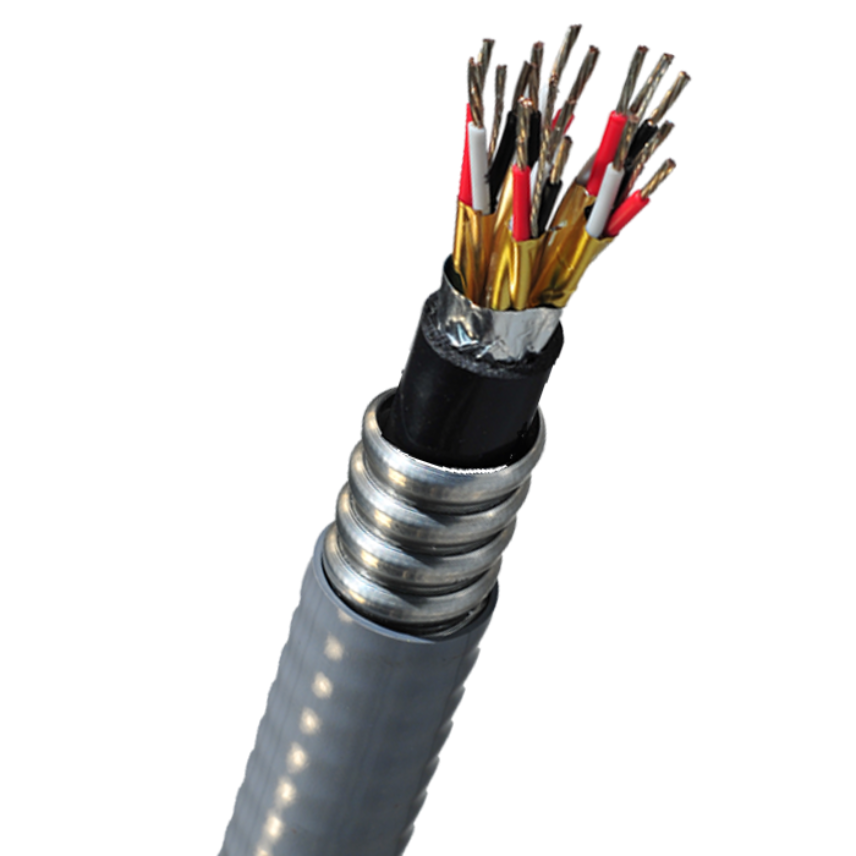

ACIC ISOS 300V

Applications

 Armoured Control and Instrumentation Cable manufactured to strict Canadian Standards Association (CSA) requirements, it is a highly rugged, multi-conductor cable designed to transmit analog or digital signals in heavy industrial, harsh, and hazardous environments. Used for connecting PLC (Programmable Logic Controller) systems to field instruments, sensors, valves, and actuators.

• For use in raceways, ventilated, non-ventilated and ladder-type cable trays.
• For dry, damp or wet locations, in ceiling air-handling plenums, direct burial, exposed and concealed wiring.
• Approved for all Hazardous Locations (HL-ABCD) as per CE Code Part I 2024 Section 18, when installed with approved connectors.

Specifications and Compliances

• CSA C22.2 No. 239, Control and instrumentation cables (Type ACIC)
• CSA C22.2 No. 38, Thermoset-insulated wires and cables (Type RW90)
• CSA C22.2 No. 174, Cables and cable glands for use in hazardous locations (HL-ABCD)
• CSA C22.2 No. 2556 FT4, UL 1685 Vertical-Tray Flame Test IEEE 383 & 1202, ICEA T-30-520 (70,000 BTU/hr) Vertical Flame Test rated
• -40°C Cold Bend and -40°C Cold Impact
• Sunlight Resistant, SUN RES and Low Acid Gas, AG14

Highlights

• Nexans ACIC Cables are: Available from stock
• Versatile & Flexible
• Resistant to Mechanical Abuse and Corrosion
• Compact and Reliable
• 90°C to -40°C
• Low Acid Gas (AG14) • Sunlight resistant
• LEAD FREE & RoHS compliant
• Marked HL to CSA C22.2 No. 174
• FT4 flame spread rating
• HAL-FREE FT4-ST1 available upon request

Marking and Identification

1. Black and White Pairs
2. Black, White and Red Triads
